PVC Flexible Duct Connector Making Machine with Notcher online
The automatic flexible duct connector making machine is consisted of de-coiler, hydraulic punching, roll former, notching device and cutter, with or without belt recoiling can be optional. The final products included punching anger and cutter all can be finished by one line. We also can supply the other related machines, such as the hand folder and TDF flange roll former.
The flexible duct connector raw material are the GI steel sheet and Fire-Resistant Fabric GC-PV (Polyester Vinyl), GC-SI(Silicone),GC-NE(Neoprene),GC-CV(Canvas).
PVC Flexible Duct Connector Making Machine Technology Flow
Power Un-coiler (2sets)--- hydraulic holes punching -- Main Roll Former --- Notching & Cutter -- Re-coiler
Main Parameters- Flexible Duct Connector Making Machine
| ITEM | CONTENT |
| Raw material | GI STEEL DC51+Z; 0.4-0.8mm It can be designed according to client request. |
| Line speed | 5-7m/min |
| Forming roller stations | 12 stations x 2 (double line stations on main roll forming machine) |
| Forming Roller material | GCR15 as raw material ,hardness HRC60-62 after treatment, |
| Shaft material | Quality steel Ф40mm, 45# steel |
| Main motor | 3kw + 0.75kw |
| suit for material size | - Flexible fireproof Fabric width range (middle side): 100----300mm;
- metal strip width range: 50-150mm;
- metal strip thickness range: 0.4-0.8mm
|
| Main machine sizes | 3500*1300*1300mm |
| Weight | 2500kg |

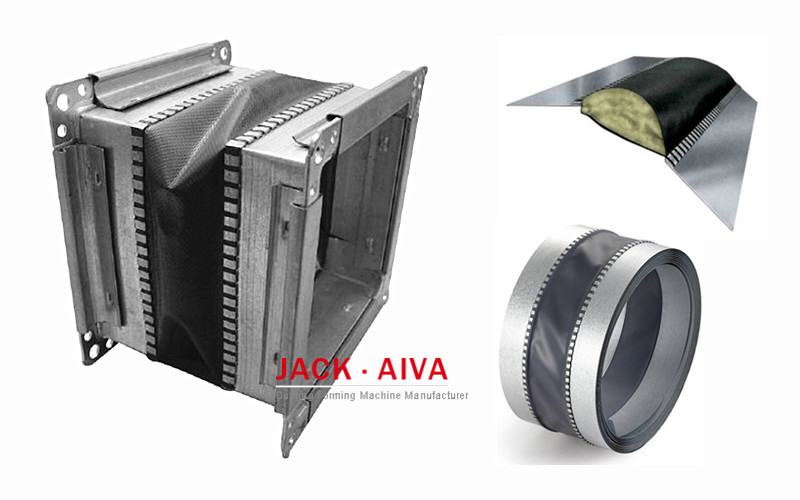

Flexible Duct connector Application
Flexible connectors consist of a fabric, e.g. polyester with PVC coating or glass fibre with PU coating, which is secured to sheet metal on both sides. The sheet metal can be made of galvanised steel or stainless steel.
The Air duct flexible duct connector joint is the solution to isolate vibrations caused by air handling units, fans, etc. Duct Flexible Connector Production Line, Air Duct Flexible Duct Connector Joint.
